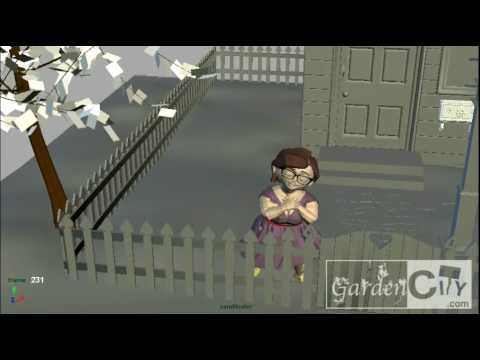

Any comments?

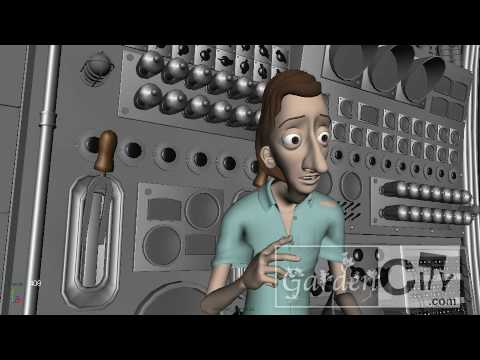

WIP first pass on shot 040_025_010

Any thoughts?

Blocking pass!  Any comments?

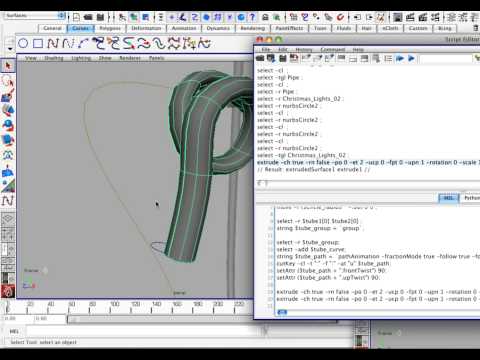

Here’s Part 3 of a multi-part MEL scripting tutorial that will go through the creation of a procedural christmas light generator from start to finish.

This part continues on with the previous tutorial to extrude a tube from the previous curves.

The next part will walk you through wrapping the existing code into a function so it will be easier to call.

The final MEL script for this part is:
string $tube_curve = “Christmas_Lights_02″;

float $circle_radius = .5;
string $tube1[] = `circle -ch off -o on -nr 0 1 0 -r $circle_radius;
move -r ($circle_radius * .66) 0 0 ;
string $tube2[] = `circle -ch off -o on -nr 0 1 0 -r $circle_radius;
move -r ($circle_radius * -.66) 0 0 ;

select -r $tube1[0] $tube2[0];
string $tube_group = `group`;

select -r $tube_group;
select -add $tube_curve;
string $tube_path = `pathAnimation -fractionMode true -follow true -followAxis x -upAxis y -worldUpType “vector” -worldUpVector 0 1 0 -inverseUp false -inverseFront false -bank false -startTimeU 0 -endTimeU 1`;
cutKey -cl -t “:” -f “:” -at “u” $tube_path;
setAttr ($tube_path + “.frontTwist”) 90;
setAttr ($tube_path + “.upTwist”) 90;

extrude -ch true -rn false -po 0 -et 2 -ucp 0 -fpt 0 -upn 1 -rotation 0 -scale 1 -rsp 1 $tube1[0] $tube_curve;
extrude -ch true -rn false -po 0 -et 2 -ucp 0 -fpt 0 -upn 1 -rotation 0 -scale 1 -rsp 1 $tube2[0] $tube_curve;

Here’s a textured render of the computer.

-David Bokser

Here’s a nice WIP shot from Josh that’s in the late stages of animation.

download

Using his playblast, I did some drawover notes for him. I’ve found that drawing over the original playblast gives you a lot more freedom to actually make new pose adjustments, as well as making it infinitely more clear than a bullet point list because you could literally point out the problem.

Get the Flash Player to see this player.
download

Watch this in HD

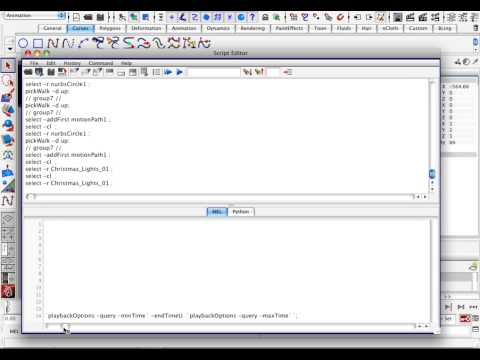

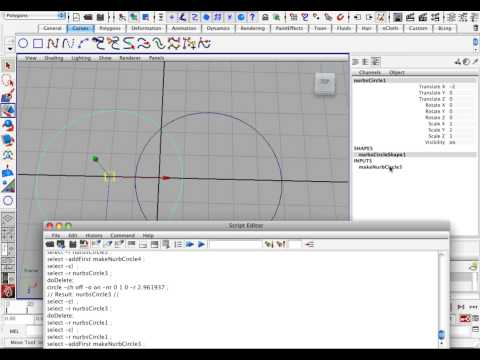

Here’s Part 2 of a multi-part MEL scripting tutorial that will go through the creation of a procedural christmas light generator from start to finish.

This part continues on with the previous tutorial to group the 2 circles together and attach them to a motionpath as guide curves for the cord of the Christmas lights.

The next part will walk you through extruding the circles to create the Christmas light cord and wrapping it into a function so it can be called externally.

The final MEL script for this part is:
string $tube_curve = “Christmas_Lights_02″;

float $circle_radius = 4.2;
string $tube1[] = `circle -ch off -o on -nr 0 1 0 -r $circle_radius;
move -r ($circle_radius * .66) 0 0 ;
string $tube2[] = `circle -ch off -o on -nr 0 1 0 -r $circle_radius;
move -r ($circle_radius * -.66) 0 0 ;

select -r $tube1[0] $tube2[0];
string $tube_group = `group`;

select -r $tube_group;
select -add $tube_curve;
string $tube_path = `pathAnimation -fractionMode true -follow true -followAxis x -upAxis y -worldUpType “vector” -worldUpVector 0 1 0 -inverseUp false -inverseFront false -bank false -startTimeU 0 -endTimeU 1`;
cutKey -cl -t “:” -f “:” -at “u” $tube_path;
setAttr ($tube_path + “.frontTwist”) 90;
setAttr ($tube_path + “.upTwist”) 90;

Josh has a pretty awesome workflow, where he blocks the whole animation in rough 2D animation and then translates it over in Maya. The results look really great. Here’s a few of the In-Progress steps. I’ll post the final pass when it’s finished.

030_020_020 2d Wip from Josh Burton on Vimeo.

030_020_020 2d Wip #2 from Josh Burton on Vimeo.

030_020_020 2d Wip #3 from Josh Burton on Vimeo.

Here’s an animation pass at 030_026_040. I think it’s at a good place to move on to the next shot, but all feedback is welcome.
